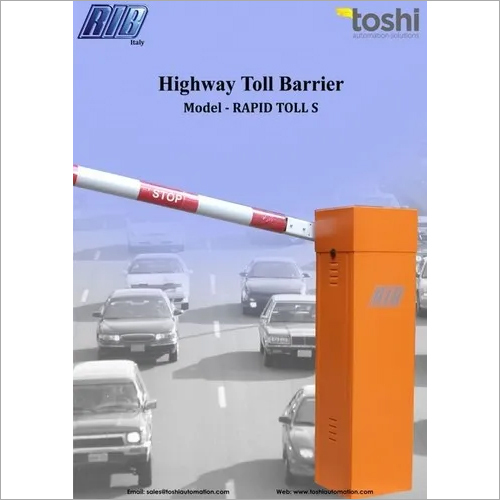

Auto Boom Toll Barrier

Auto Boom Toll Barrier
Auto Boom Toll Barrier
Send Inquiry
Product Code : Rib-Rapid S Toll Barrier - 4 Meter
Brand Name : RIB
Product Description

Set Rib Toll Barrier 4 Meter (Rapid S)

Technical Specifications :

  • Max. Boom Length : 3 to 4 meter in 2mm Thick round aluminium bar with foam
  • Boom Weight (Kg) : 2.65kg for 4mtr. long
  • Max. Torque (NM) : 72
  • Opening Time (Sec) : 2 to 3 sec.
  • Power Supply (V) : 230
  • Motor Capacity (W) : 240
  • Power absorbed (A) : 1
  • Weight of Operator (Kg) : 62
  • Protection Grade (IP) : 54
  • Daily Cycles Suggested (n) : 1200
  • Service (%) : 100
  • Operating Temp (C) : -10 to +55
  • Colour : RAL 2000 for Barrier
White with red reflective for Boom
  • RS-485 : Inbuilt
  • MTBF (mean time between failures) : 0.5 Million
  • Life Cycles: 5 Million
  • Certification: CE, Made in Italy
